LM2576TV-ADJG onsemi

Here is the English description of the LM2576TV-ADJG chip:

• Function: Step-Down Switching Regulator
• Input Voltage: 4V to 52V
• Output Voltage: Adjustable 1.23V to 38V
• Output Current: Up to 3A
• Switching Frequency: 150kHz
• Package: TO-263-7

The LM2576TV-ADJG from Texas Instruments is a step-down switching regulator controller capable of delivering up to 3A from an adjustable 1.23V to 38V output over a wide 4V to 52V input range.

Key Features:

• Wide adjustable output voltage range
• Extended 4V to 52V input operating voltage
• Maximum continuous output current of 3A
• 150kHz fixed switching frequency
• TO-263-7 package with exposed pad for cooling

Common Applications:

• Distributed power systems with varying voltage inputs
• Battery charging and backup power supplies
• Point-of-load regulation requiring high efficiency

Benefits Include:

• High flexibility with range of supported input/output voltages
• High efficiency conversion from 4V to 52V sources
• Exposed pad aids dissipation of power from 3A output

Well-suited for applications needing up to 3A output where a broad voltage compatibility, high efficiency or stringent thermal management are important criteria.

In summary, the LM2576TV-ADJG provides leading adjustable regulation optimized for wide input voltage tolerance and thermal performance.

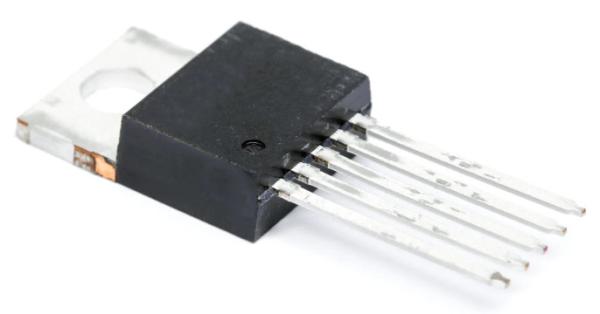

LM2576TV-ADJG onsemi Images
