5M570ZT100A5N Intel / Altera

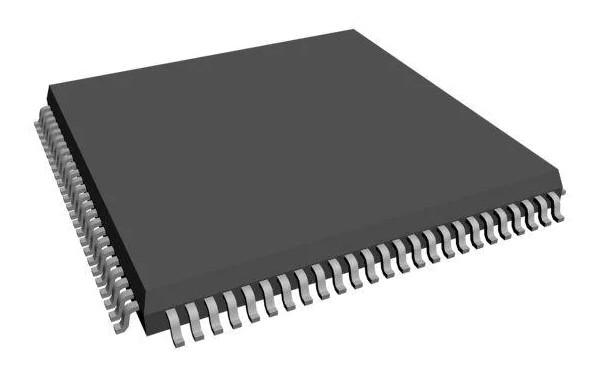

Description : 5M570ZT100A5N Intel / Altera TQFP-100

Contact Now

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Intel
Product Category:	CPLD - Complex Programmable Logic Devices
RoHS:	Details
Series:	MAX V 5M570Z
Mounting Style:	SMD/SMT
Package / Case:	TQFP-100
Operating Supply Voltage:	1.8 V
Number of Macrocells:	440 Macrocell
Number of I/Os:	74 I/O
Supply Voltage - Max:	1.89 V
Supply Voltage - Min:	1.71 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Maximum Operating Frequency:	152 MHz
Propagation Delay - Max:	9 ns
Packaging:	Tray
Brand:	Intel / Altera
Memory Type:	Flash
Moisture Sensitive:	Yes
Number of Logic Array Blocks - LABs:	57
Number of Logic Elements:	570
Operating Supply Current:	27 uA
Product Type:	CPLD - Complex Programmable Logic Devices
	90
Subcategory:	Programmable Logic ICs
Total Memory:	8192 bit
Tradename:	MAX V
Part # Aliases:	969135
Unit Weight:	0.207431 oz
